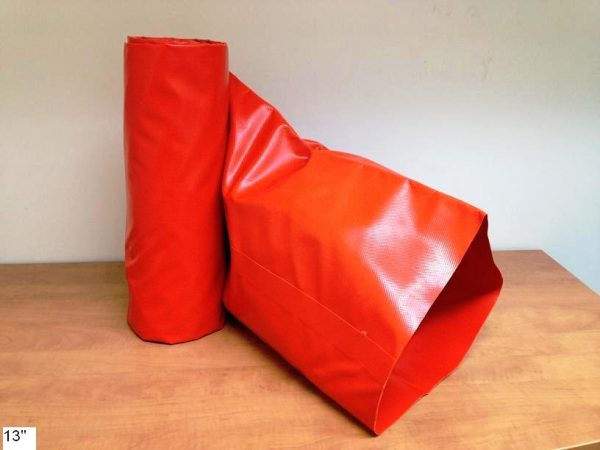

13 inch on table 2

Layflat Waterhose

Our layflat water hose is constructed using  heavy duty PVC fabric which is thermally heat welded into the specific tube diameter. We offer 4’’ – 17’’ diameter hose and have the capabilities to make larger diameter products if required. Typically the rolls are 100’ long but can be ordered in custom lengths as required.

 Applications:

  • Irrigation
  • Agricultural
  • Construction
  • Flood control
  • General industrial
Sizes Available:
Pump SizeDiameterPressure (PSI)Weight (100′ roll)
3″4″6022 Lbs
4″5″5526 Lbs
6″7″5038 Lbs
8″9″3548 Lbs
10″11″3059 Lbs
12″13″3070 Lbs
14″15″3080 Lbs
16″17″25100 Lbs

Frequently Asked Questions

Q) What size hose do I need?
A) You want to order a hose that is one inch larger than your pump size in diameter so you can easily slide it over the pump to clamp it on.

Q) How do I fasten the hose to my pump?
A) We recommend using a simple hose clamp available at most hardware stores. Another great local company, General Metal http://generalmetal.ca/bau-man/high-capacity-water-pumps should be able to help you with all of your hose clamp or pump needs.

Q) Can I extend my existing hose?
A) Yes, we recommend laying one hose inside the other and overlapping by a couple of feet. The pressure from the inside hose will expand the first hose to keep it tight against the second hose – no clamping required.

Q) What kind of material do you use for your hoses?
A) We use a 28oz PVC material that is flexible yet durable enough to use on any terrain.
